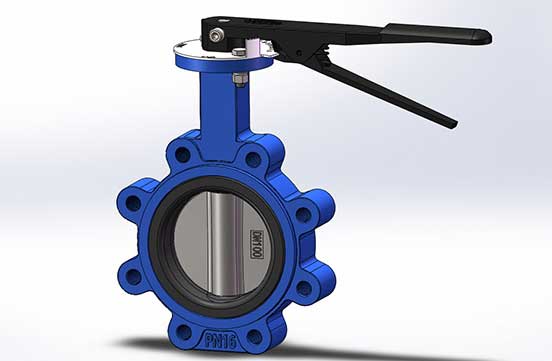

Lug Type Wafer Butterfly Valve


  • Size: DN40-DN300
  • Pressure: PN10/PN16/Class 150/10K
  • Body Materials: DI,WCB,304
  • Disc Materials: DI、CF8、CF8M、CF3、CF3M
  • Seat Materials: EPDM,NBR,VITON,PTFE
  • Applicable Medium: Clear water, neutral liquid, weak acid and alkali, sea water, Oils, etc.

Introduction

Features

Technical Parameters

Technical Standard

Main Parts Materials

Body Materials:DI
Disc Materials:DI、CF8、CF8M、CF3、CF3M、1.4529、C594、C598
Seat Materials:EPDM、NBR、Viton、PTFE
Stem Materials:45、SS416、SS420、SS304、SS431

(1)The structure is simple and compact, the rotation of 90 °is quickly to open and close, and the service life is long. The side flange can meet the PN10, PN16, 150Lb and 10K flanges;
(2)All products can provide the pressure test: All products can provide the pressure test report before leaving the factory.
(3)High performance seat rubber: The rubber content is 50%, and the switch life is more than 30000 times

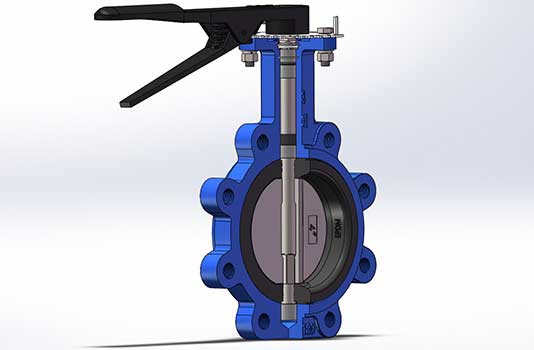

(4)Axial seal: The shaft is supported by 4 oil-free bearings, double seal structure design of oil seal and O-ring, smaller torque and reliable seal;
(5)Surface coating: Epoxy powder coating is adopted, with strong adhesion and good weather resistance. It can be used indoors and outdoors.
(6)Ductile iron handle: The handle is made of ductile iron, compared with Stamping handle, ductile iron handle is more better strength, stronger corrosion resistance and much more durable. The end handle with half-round structure design, is no edges and corners and feels very good.

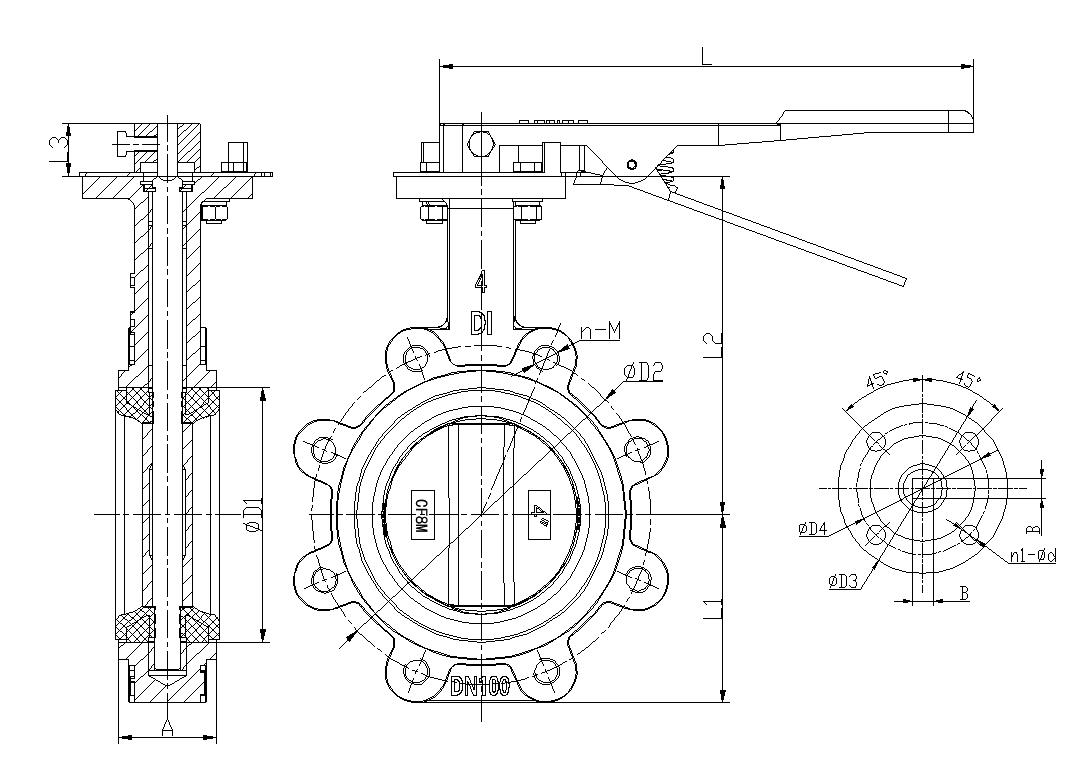

DNAD1L1L2L3BPN16PN10150LBφD3φD4n1-φdL

      D1n-MD1n-MD1n-M
2″DN504273.3541612591254-M161254-M16120.74-5/8″65504-8249
2.5″DN654486621752591454-M161454-M16139.74-5/8″65504-8249
3″DN8045100.9821812591608-M161608-M16152.44-5/8″65504-8249
4″DN10051.51329920028111808-M161808-M16190.58-5/8″90704-10283
5″DN1255415611421328142108-M162108-M16215.98-3/4″90704-10283
6″DN1505518512923628142408-M202408-M20241.38-3/4″90704-10283
8″DN20059235150260331729512-M202958-M20298.58-3/4″1251024-12390
10″DN25066289186292332235512-M2435012-M2036212-7/8″1251024-12390
12″DN30076341218337332241012-M2440012-M20431.812-7/8″1251024-12540
Design and Manufacture Standard:API 609
Face to FaceAPI 609
Test Standard:API 598
Top Flange Connection Standard:ISO 5211
Flange Size Standard:ASME B16.5、ASME B16.47、
ASME B16.1、JIS B2220、DIN 2501
